5000Kva Three Phase Pad Mounted Electrical Transformer Step-Down 34.5Kv To 480V
Three-phase pad-mounted oil-immeresed distribution transformers are powerful, dependable, and designed with the environment in mind. With the ability to function indoors and outdoors, these transformers offer enhanced reliability and protection against critical equipment failure. The lower operating costs and heat emissions of these transformers make them an ideal choice for a wide range of applications.
STRUCTURE
Main data
| Transformer Type | Pad Mounted, Compartmental-Type |
| Transformer Configuration | Liquid Filled Pad Mounted |
| Transformer Feed Type | Loop Feed |
| Operation | Step-Down Operation (Not Approved for Step-Up) |
| Phase | Three Phase |
| Capacity | 5 MVA (5000 KVA) |
| Vector Group | YnD1 |
| Primary Voltage | 34500GrdY/19920 |
| Secondary Voltage | 480V |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Insulation Rating | Class E Insulation - 120°C, 248°F |
| Cooling Class | KNAN; Self-Cooled |
| Impedance | 5.0% Typical |
| Efficiency Standard(s) | Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards |
| K-Factor Rating (Harmonic Mitigation) | K-1 (Standard) |
| Winding Material | Copper |
| Ambient Temperature Rating | 40°C |
| Ambient Operating Temperature Range | -40°C to +40°C (-50°F to +104°F) |
| Sound Level | 65 dBA |
| Elevation (Altitude) | 3300ft (1000 meters) Above Sea Level |
| Dimensions* | 96''-W x 108''-D x 94''-H |
| Ratings | Meets/Exceeds DOE 2016 Efficiency Ratings |
| Efficiency % | 98.50% |
| Total Load Loss (in watts) at 50% | +/- 16,640W |

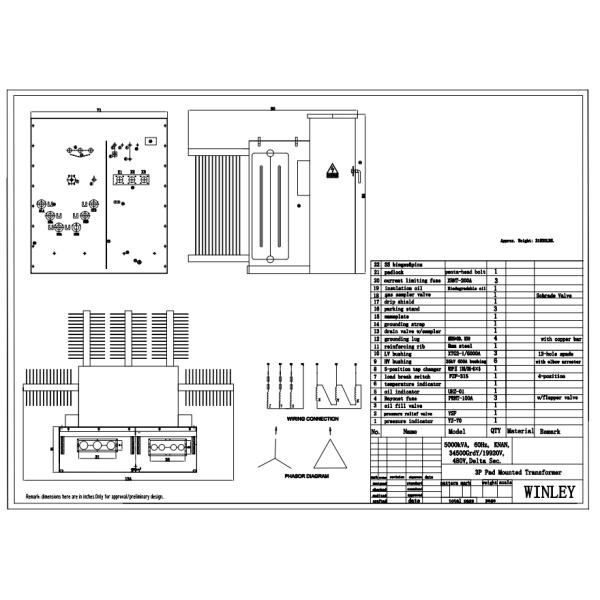

Technical drawings
Specification
| Three Phase Pad Mounted Transformer |
| Rated Power (KVA) | High Voltage (KV) | Low Voltage (V) | Loss (W) |
| No-load Loss (W) | On-load Loss (W) |
| 75KVA | 24.94/14.4kV
12.47/7.2kV
34.5KV/
19.92KV/
13.8KV/
13.2KV/
or others | 120/240V
480Y/
277V
600Y/
347V | 180 | 1250 |
| 112.5KVA | 200 | 1500 |
| 150KVA | 280 | 2200 |
| 225KVA | 400 | 3050 |
| 300KVA | 480 | 3650 |
| 500KVA | 680 | 5100 |
| 750KVA | 980 | 7500 |
| 1000KVA | 1150 | 10300 |
| 1500KVA | 1640 | 14500 |
| 2000KVA | 2160 | 20645 |
| 2500KVA | 2680 | 23786 |
| 3000KVA | 3300 | 25300 |
| 3750KVA | 4125 | 27875 |
| 5000KVA | 5200 | 30000
|
Optional accessories
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
